This article walks through Undercurrent Cadence (E001), a Undercurrent Cadence (E001) trading strategy. It covers the strategy logic, signals and parameter settings, and ships ready-to-use MT4 / MT5 EAs with source download and live position tracking so you can evaluate and deploy it fast.
Magic 1062
[tv_ticker]
Concept

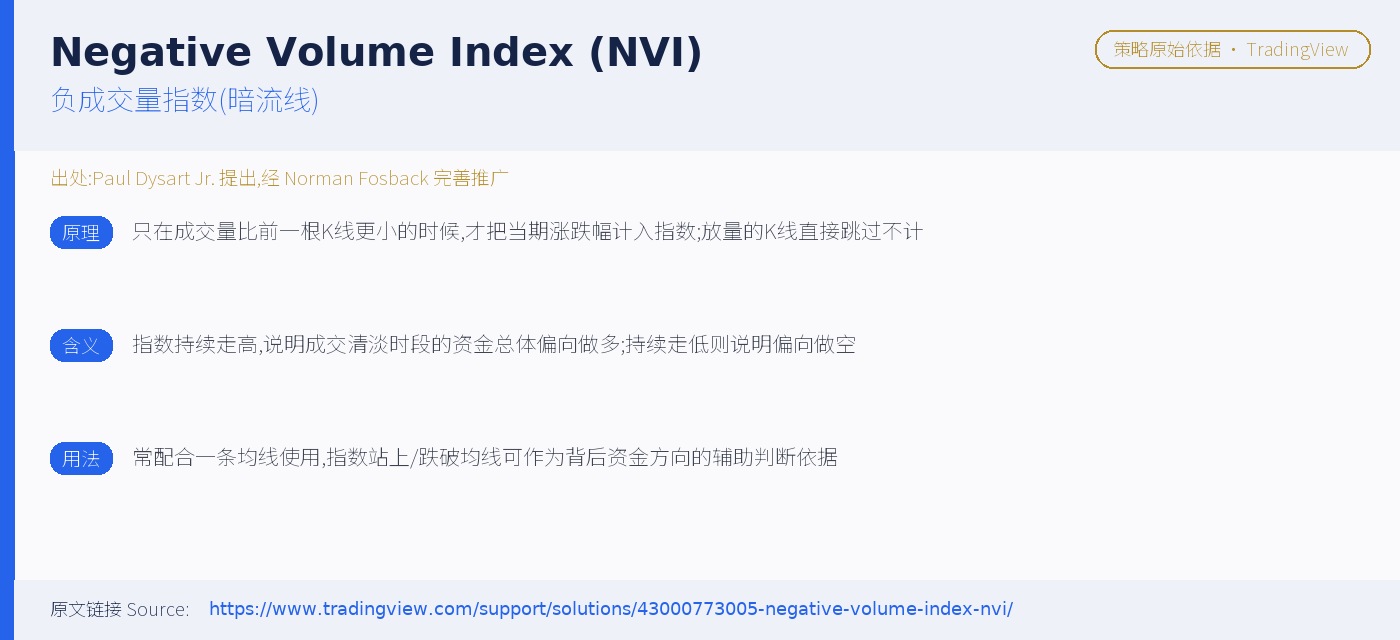

Most breakout-chasing systems react to the volume spike everyone already sees. Undercurrent Cadence flips that logic: it tracks a “quiet money” regime line that only updates on low-volume bars — the Negative Volume Index (NVI) — under the theory that large participants tend to move size without spiking volume. Once that undercurrent clearly leans one direction, the strategy waits for a de-trended cycle line (DPO) to tick back through zero as the actual timing trigger.
1.5x ATRStop Loss
2.5x ATRTake Profit
1%Risk / Trade
10 / dayMax Entries

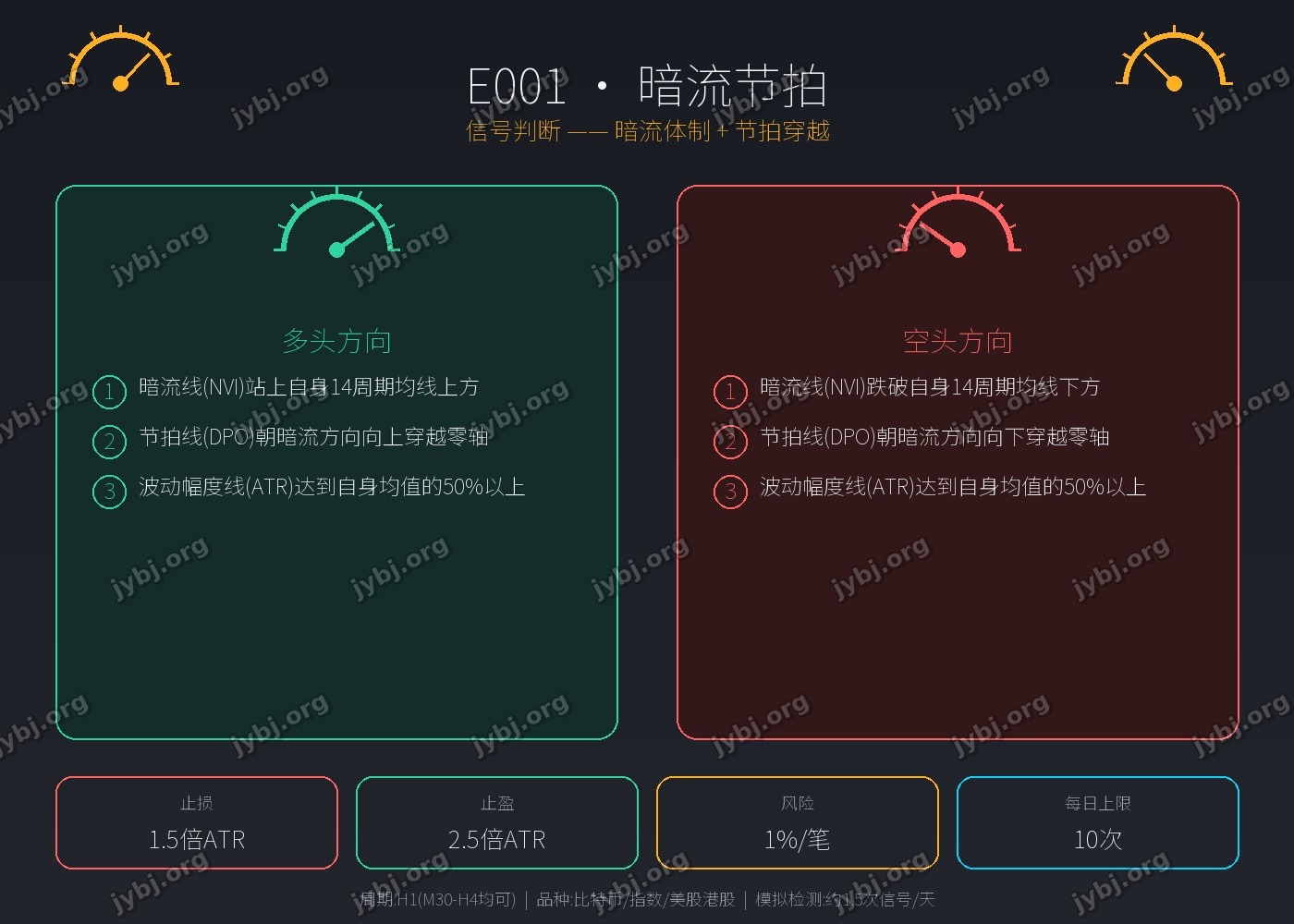

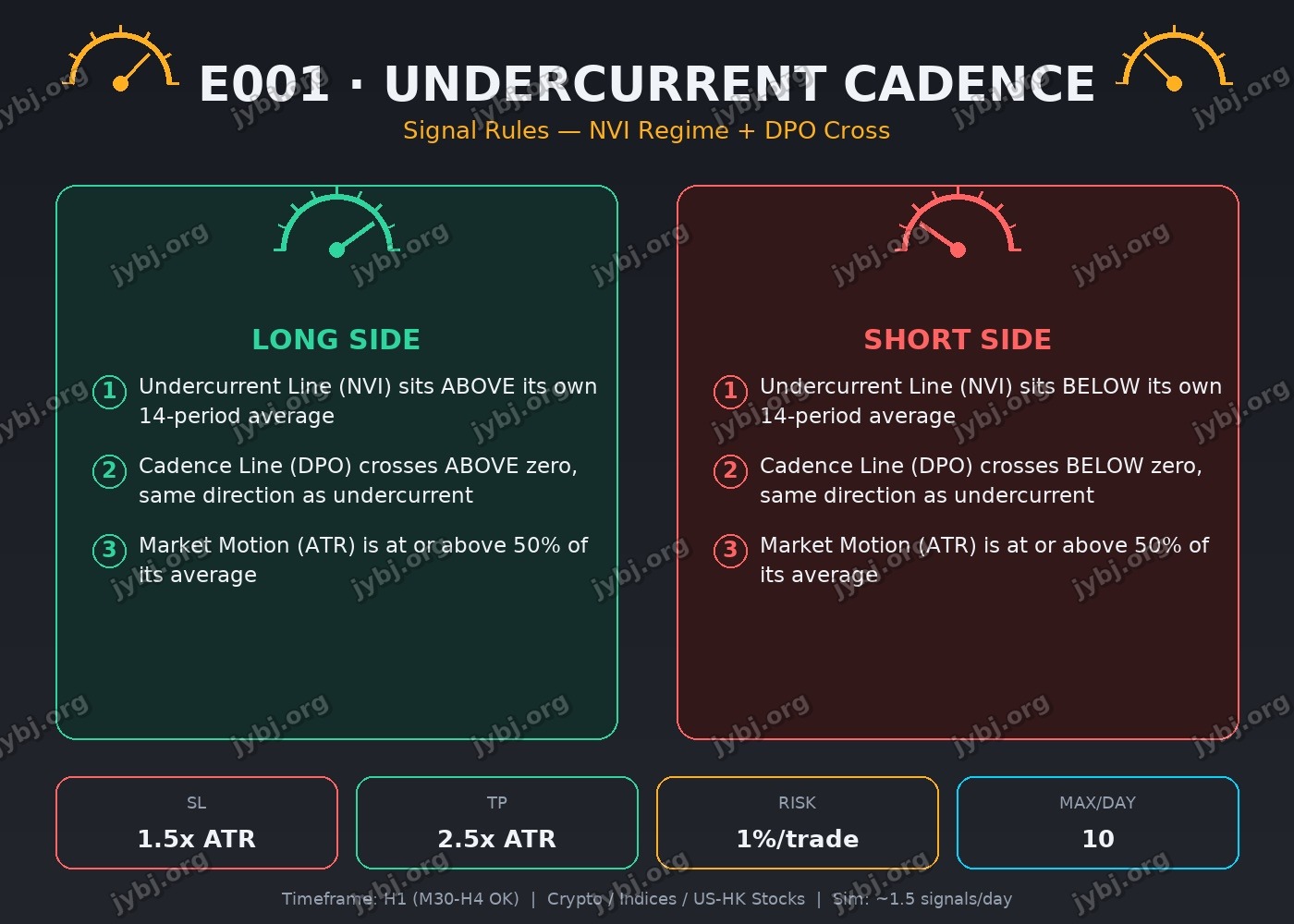

Signal Rules 信号判断

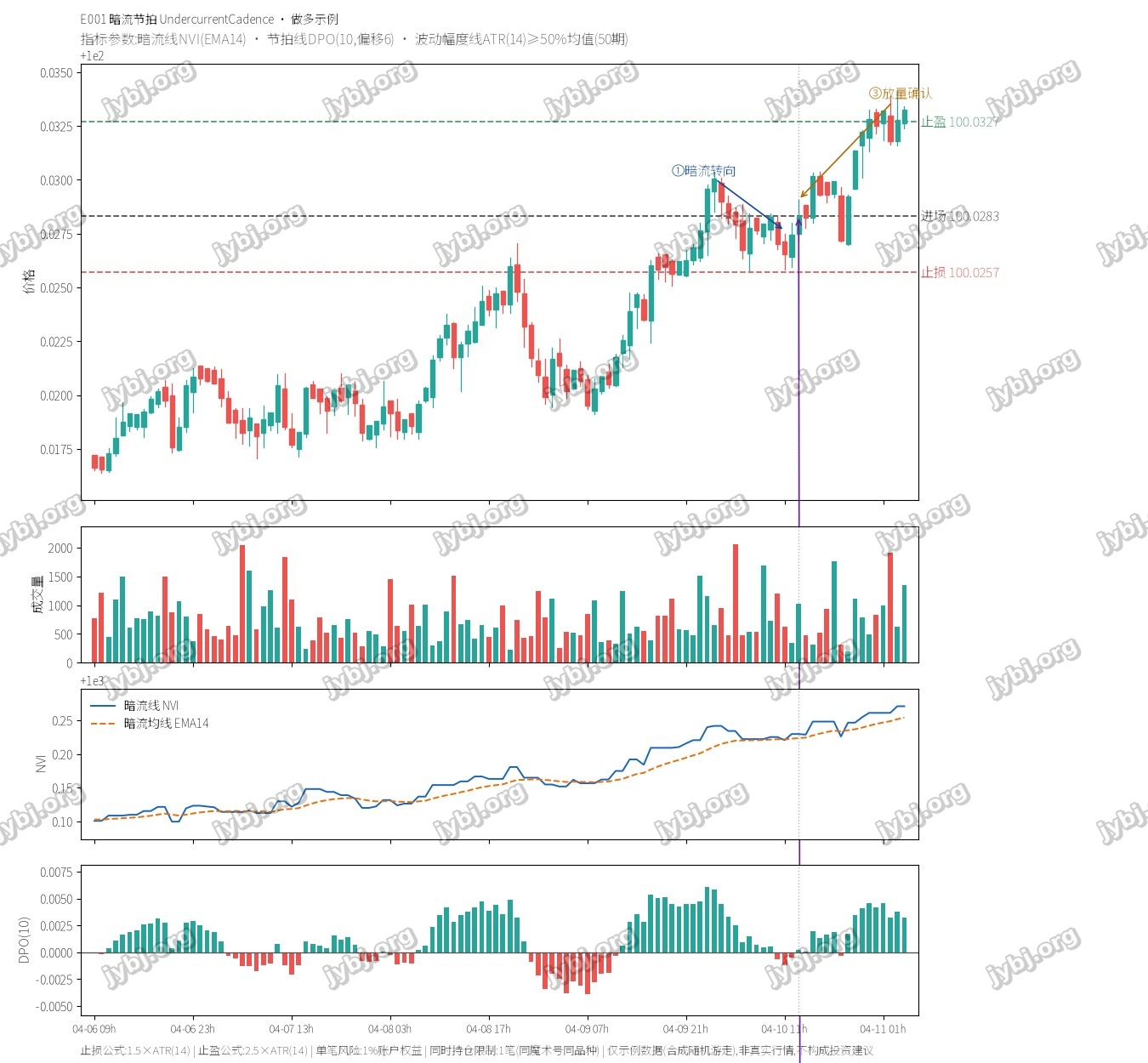

Long Side
- Undercurrent Line (NVI) sits above its own 14-period EMA — bullish undercurrent bias

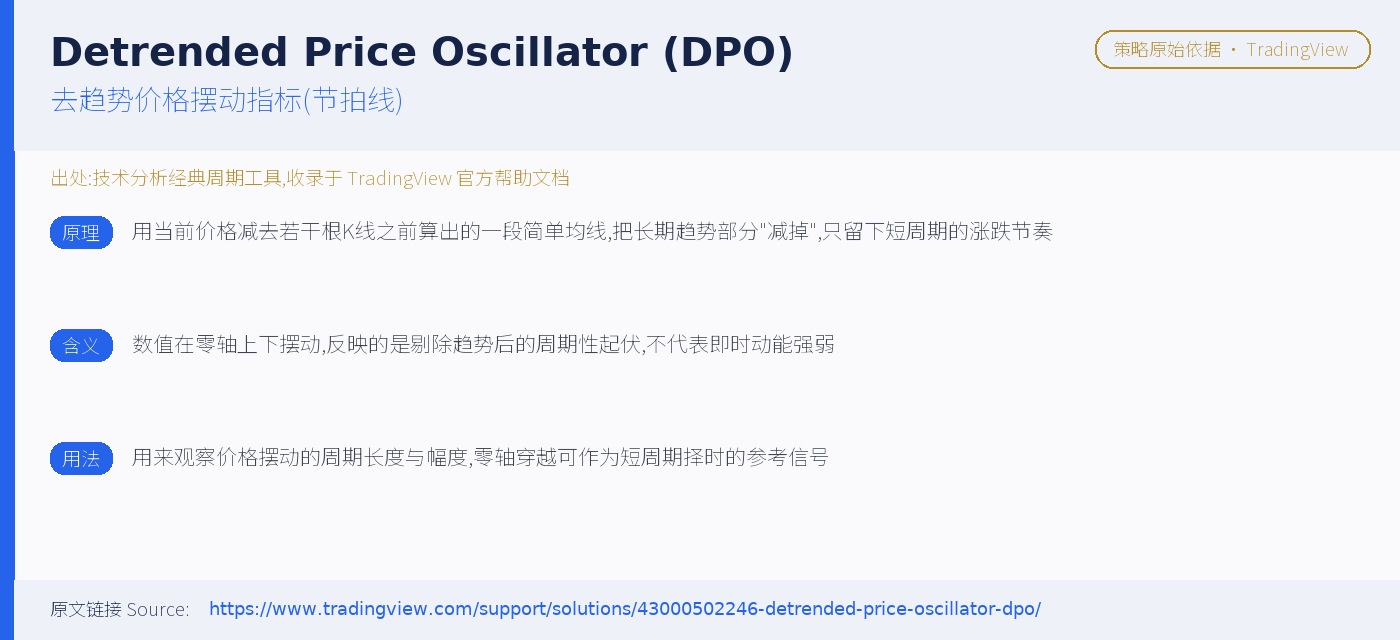

- Cadence Line (DPO, 10-period) crosses above zero, confirming the same direction as the undercurrent bias
- ATR(14) is at or above 50% of its own 50-bar average (volatility floor)

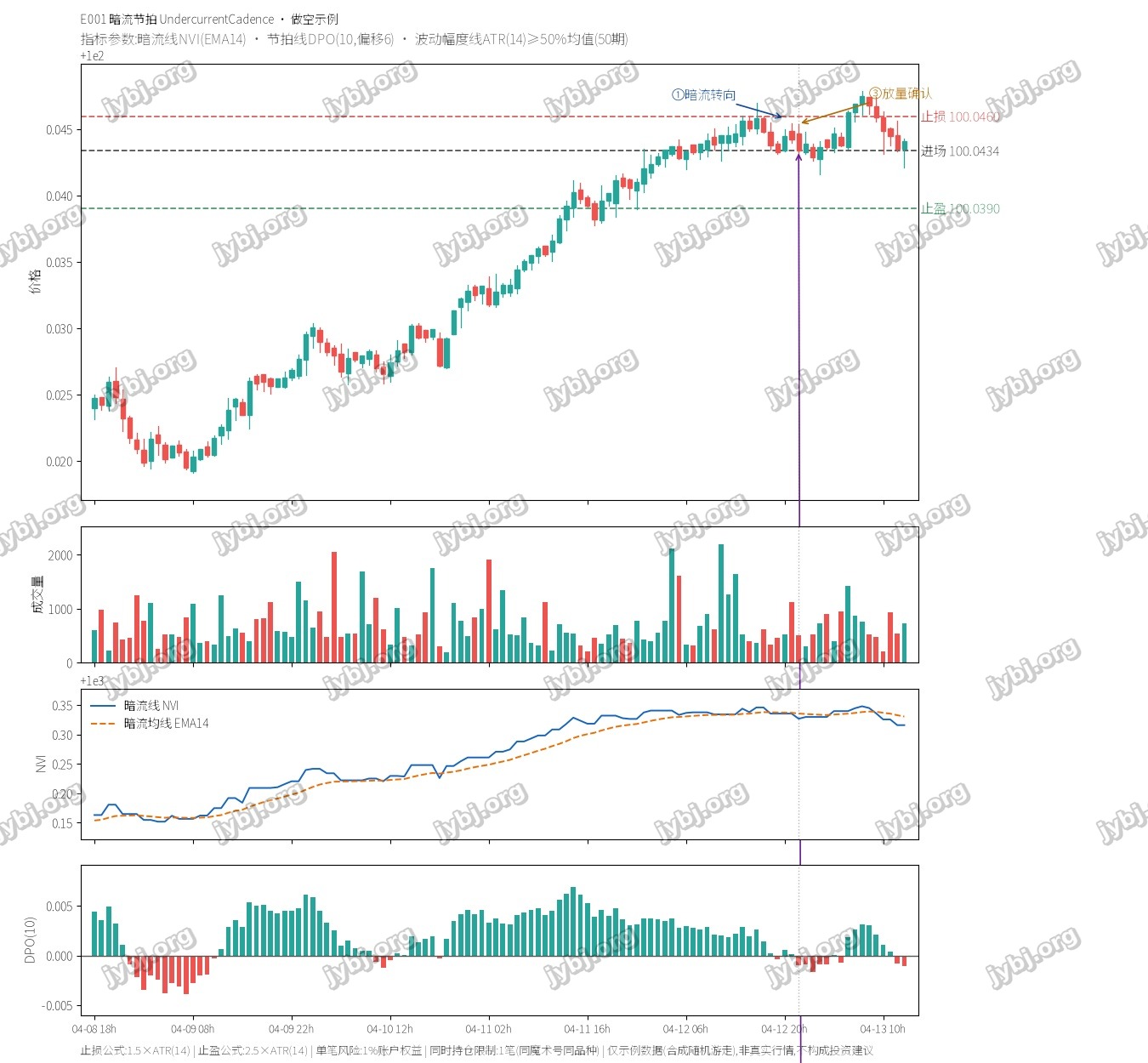

Short Side
- Undercurrent Line (NVI) sits below its own 14-period EMA — bearish undercurrent bias
- Cadence Line (DPO, 10-period) crosses below zero, confirming the same direction as the undercurrent bias
- ATR(14) is at or above 50% of its own 50-bar average (volatility floor)

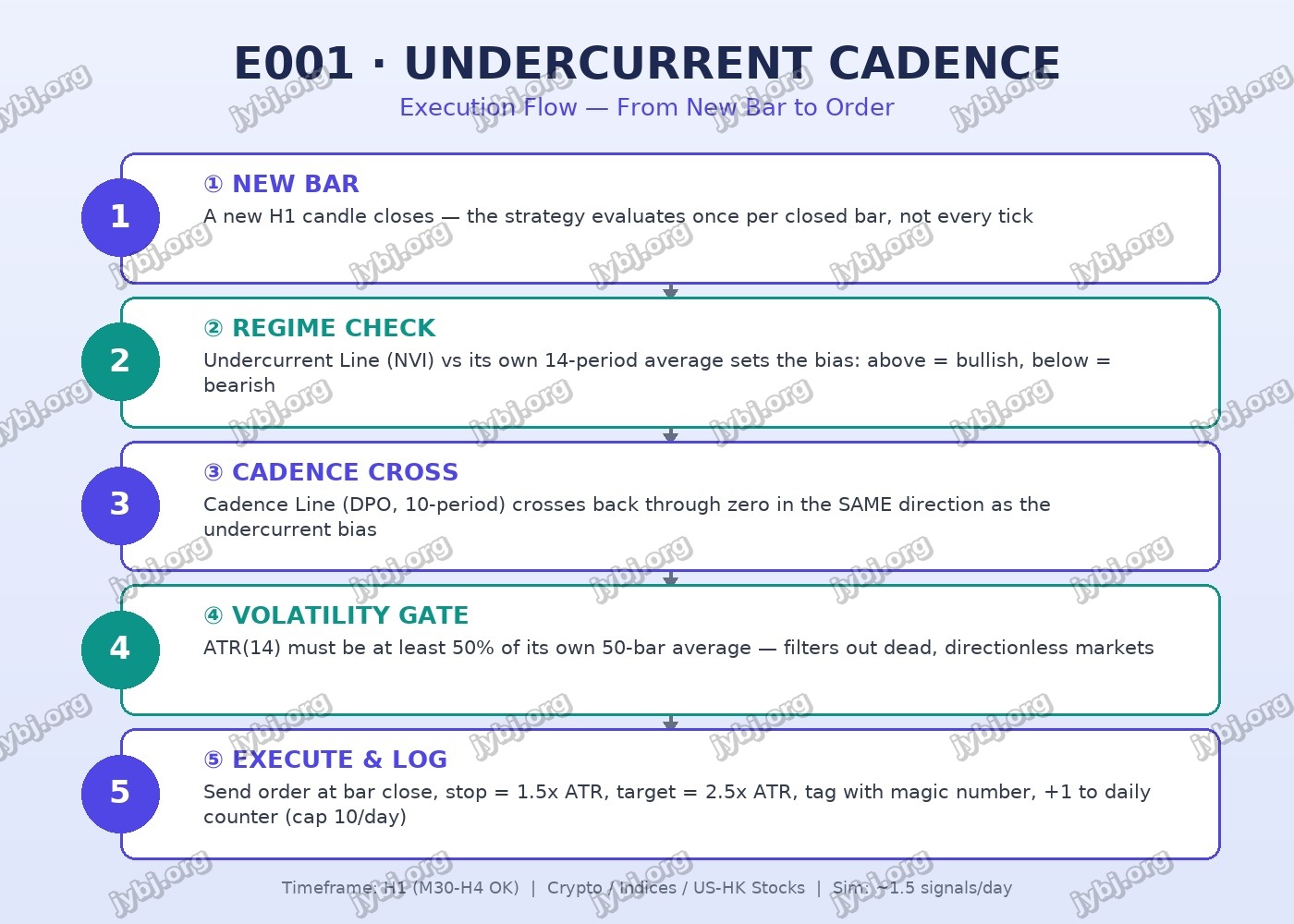

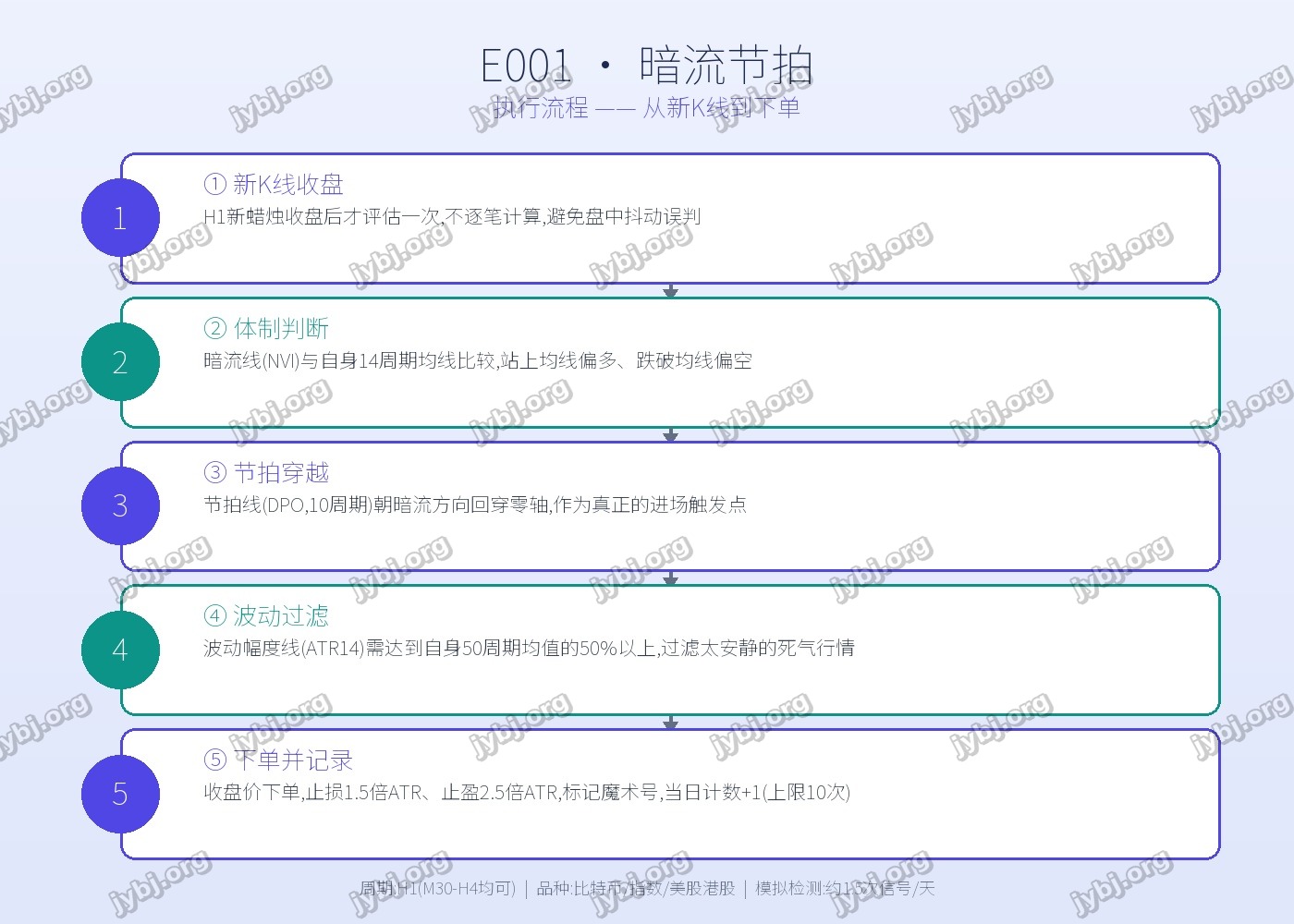

Execution Flow 执行流程
[tv_analysis symbol=”XAUUSD”]
Parameters 参数设置
| Parameter | Default | Description |
|---|---|---|
| NVI_EMA_Period | 14 | Smoothing period for the Undercurrent (NVI) regime line |
| DPO_Period | 10 | Cadence Line lookback period (internal offset = 6 bars) |
| ATR_Period | 14 | ATR period used for both risk sizing and the volatility gate |
| ATR_AvgPeriod | 50 | Rolling average period for the ATR baseline |
| ATR_RatioMin | 0.5 | Minimum ATR-to-average ratio required to trade |
| SL_ATR_Mult | 1.5 | Stop-loss distance in ATR multiples |
| TP_ATR_Mult | 2.5 | Take-profit distance in ATR multiples (~1.67:1 reward-to-risk) |
| MaxTradesPerDay | 10 | Daily entry cap, resets at midnight server time |
| NoSignalAlertDays | 3 | Watchdog alert threshold for consecutive no-trade days |
Frequency Test
Entry logic was replayed in Python on synthetic H1 data (~250 trading days, regime-switching random walk). With default parameters the strategy produced an average of ~1.5 signals per day, comfortably within the 1–10/day target range, with a roughly balanced long/short split.
Risk Disclosure: This page describes a rules-based framework for research and educational purposes only. It is not financial advice and does not guarantee any outcome. Performance on historical or simulated data does not guarantee future results. Always backtest and forward-test on your own platform, use proper position sizing, and only risk capital you can afford to lose. Markets can and do move against any strategy.
[tv_calendar]
[tv_minichart symbol=”EURUSD”]
Source & Download
1. Place the EA file in
MQL5/Experts/ folder2. Add
https://jybj.org to WebRequest whitelist: Tools → Options → Expert Advisors → Allow WebRequest for listed URL3. One invite code = one account (non-transferable)
Ready to use · MT4 / MT5 · Parameters preconfigured 即开即用,参数已预设
Source code & compiled files: GitHub
Full documentation: Online strategy page
Live performance: View this strategy live →
Live Positions 实时持仓
[mt5_position magic=1062]
