This article walks through EchoBand Protocol, a EchoBand Protocol trading strategy. It covers the strategy logic, signals and parameter settings, and ships ready-to-use MT4 / MT5 EAs with source download and live position tracking so you can evaluate and deploy it fast.
Magic 1000011
[tv_ticker]
An Alternative to Conventional Trend-Following Approaches 趋势过滤
Most quantitative systems chase breakouts or follow trends. The EchoBand Protocol takes the opposite stance: it identifies moments when price has become significantly overextended relative to its recent volatility envelope and momentum, then participates in the statistical tendency of price to revert toward its mean.
By combining Bollinger Bands for deviation measurement, RSI for momentum exhaustion, declining volume for confirmation of weakening conviction, and low ADX to ensure we operate in mean-reverting rather than trending regimes, the system creates a high-conviction filter for participation opportunities.
DETAILED RULES
Core Logic & Participation Rules 核心逻辑
All conditions must be met simultaneously on the closed bar for a valid signal.
Bullish Participation Opportunity
Long Setup
- Price closes below the lower Bollinger Band (20, 2.0)
- RSI (14) registers below 30 (oversold condition)
- Current volume is lower than its 20-period simple moving average (exhaustion)
- ADX (14) remains below 25 (confirms ranging, mean-reverting environment)
Bearish Participation Opportunity
Short Setup
- Price closes above the upper Bollinger Band (20, 2.0)
- RSI (14) registers above 70 (overbought condition)
- Current volume is lower than its 20-period simple moving average (exhaustion)
- ADX (14) remains below 25 (confirms ranging, mean-reverting environment)
Stop Loss
Dynamic stop loss placed at 1.5 × ATR(14) beyond the entry price. This volatility-adjusted distance adapts to current market conditions and protects capital during unexpected expansions.
Take Profit
Primary target: reversion to the Bollinger Band middle band. Alternative: fixed 1:2 risk-reward ratio calculated from the stop-loss distance. The system favors mean reversion to the statistical center.
Position Sizing
Strict 1% account risk per participation opportunity. Lot size is automatically calculated based on stop-loss distance, account balance, and broker specifications. Only one open position allowed at any time.
CONFIGURATION
System Parameters 参数设置
All values are fully customizable in both MT4 and MT5 versions. Recommended defaults shown below.
| Indicator / Setting | Value | Description |
|---|---|---|
| Bollinger Bands Period | 20 | Standard deviation envelope period |
| Bollinger Bands Deviation | 2.0 | Width of the volatility bands |
| RSI Period | 14 | Momentum oscillator period |
| RSI Overbought / Oversold | 70 / 30 | Extreme momentum thresholds |
| Volume SMA Period | 20 | Volume exhaustion comparison window |
| ADX Period & Threshold | 14 / 25 | Trend strength filter (below = ranging) |
| ATR Period & SL Multiplier | 14 / 1.5 | Volatility-based stop loss distance |
| Risk per Participation | 1.0% | Maximum account risk per opportunity |
| Reward Ratio | 1 : 2.0 | Alternative fixed risk-reward target |
All parameters include bilingual comments in the source code for easy configuration in MetaTrader.
IMPLEMENTATION[mt5_calc_position]
How to Deploy the EchoBand Protocol
1
Install the Expert Advisor
Copy the provided .mq4 or .mq5 file into the appropriate Experts folder of your MetaTrader terminal and compile it.
2
Attach to Chart
Apply the EA to a chart of your chosen instrument and timeframe (recommended: H1 or H4). Adjust input parameters if desired using the bilingual comments for guidance.
3
Monitor & Review
The EA will automatically scan for valid signals, calculate position size according to the 1% risk rule, and manage stop loss and take profit levels. Review the Experts tab and journal regularly.
Visual Signal & Execution Guides Included

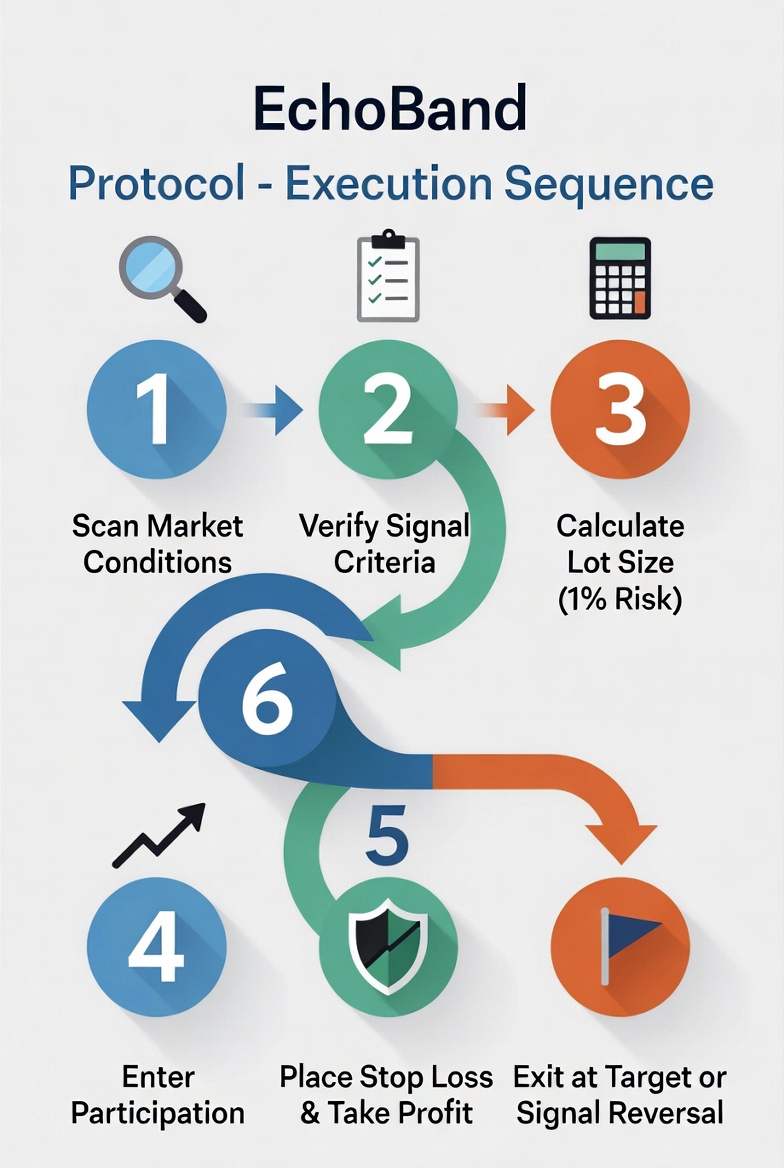

The complete package contains high-quality English and Chinese infographics illustrating signal judgment conditions and the exact execution sequence.
Download Package Now
Important Risk Disclosure & Disclaimer
The EchoBand Protocol and all accompanying materials are provided strictly for educational, research, and informational purposes only. They do not constitute investment advice, financial advice, or an offer to buy or sell any financial instrument.
Trading and market participation involve substantial risk of loss and are not suitable for all investors. Past performance is not indicative of future results. The high degree of leverage can work against you as well as for you.
Before using any automated system, you should carefully consider your investment objectives, level of experience, and risk appetite. If you have any doubts, please seek advice from an independent financial advisor.
The developers and distributors of this material accept no liability for any loss or damage arising from its use.
[tv_minichart symbol=”XAUUSD”][tv_calendar]
Source & Download
1. Place the EA file in
MQL5/Experts/ folder2. Add
https://jybj.org to WebRequest whitelist: Tools → Options → Expert Advisors → Allow WebRequest for listed URL3. One invite code = one account (non-transferable)
Ready to use · MT4 / MT5 · Parameters preconfigured 即开即用,参数已预设
Source code & compiled files: GitHub
Full documentation: Online strategy page
Live performance: View all strategies →
Live Positions 实时持仓
[mt5_position magic=1000011]
Related Trading Strategies
Want to compare more automated strategies? These related ones are worth a look:
- Confluence Sentinel Protocol • Professional Trading Strategy — related strategy — compare parameters and live positions
- Vortex Reversal Protocol | Professional Quantitative Trading System — related strategy — compare parameters and live positions
- EchoReversion Protocol | Professional Quantitative Trading Strategy — related strategy — compare parameters and live positions
EchoBand Protocol Trading Strategy FAQ
Which symbols and timeframe does EchoBand Protocol suit?
EchoBand Protocol adapts to major FX and gold symbols; validate on demo first. Fine-tune for your broker’s spread and leverage, and rely on demo results before going live.
How do I download and run the EchoBand Protocol MT4/MT5 EA?
The Source & Download section provides compiled MT4/MT5 files and source. Drop it into MT5’s Experts folder, restart, and attach it to a chart — parameters are preset.
What are the risks of the EchoBand Protocol trading strategy?
No trading strategy guarantees profit; past and backtested results don’t predict the future. Run it on demo, cap per-trade and total risk, and understand the logic before trading live.
