E028 HelmTrim — Adaptive Helm

This article walks through E028 HelmTrim, a E028 HelmTrim trading strategy. It covers the strategy logic, signals and parameter settings, and ships ready-to-use MT4 / MT5 EAs with source download and live position tracking so you can evaluate and deploy it fast.

Magic 1089

[tv_ticker]

📦

Strategy Repository

git-wp-project/strat-e028-helmtrim-1089

View source on GitHub →

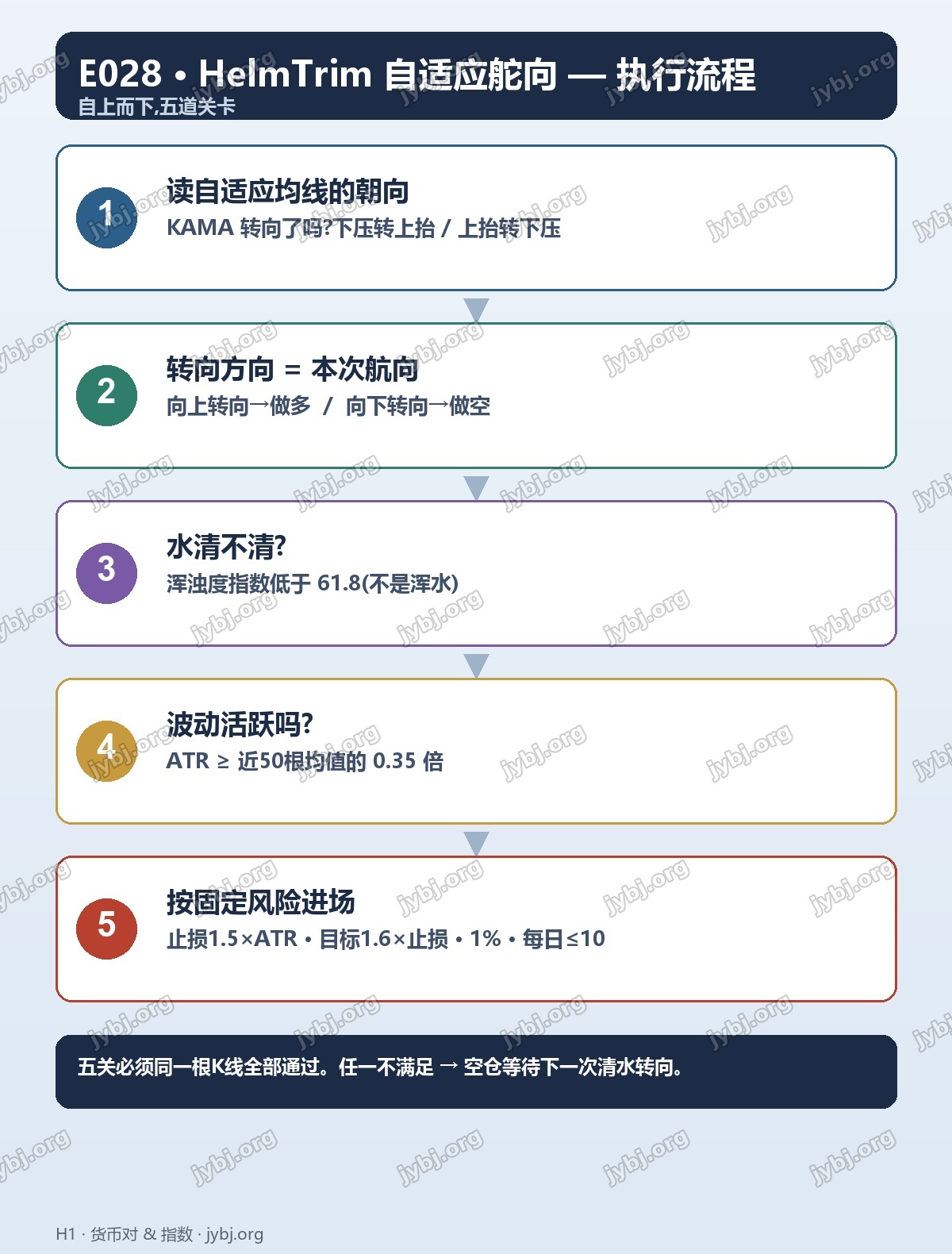

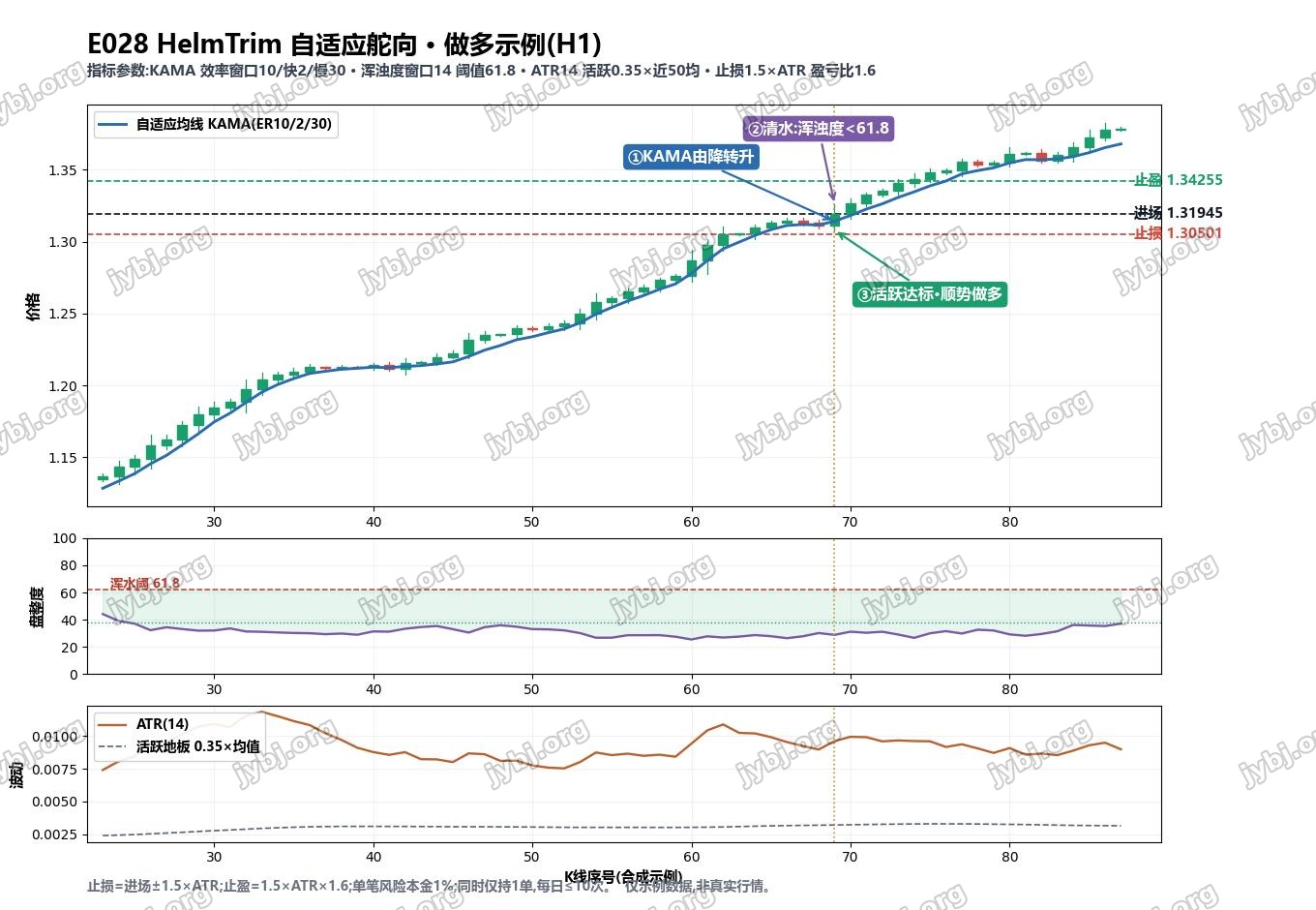

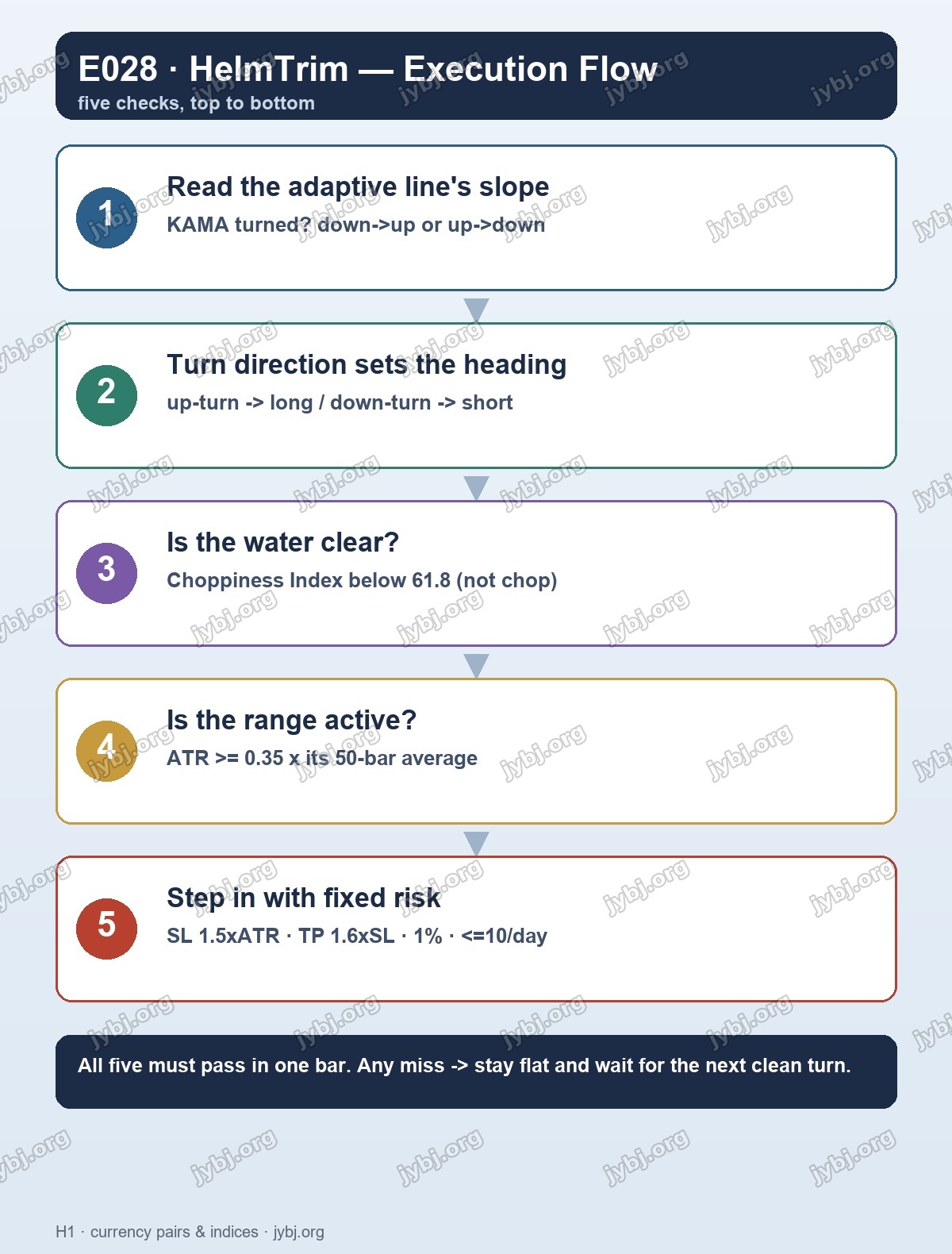

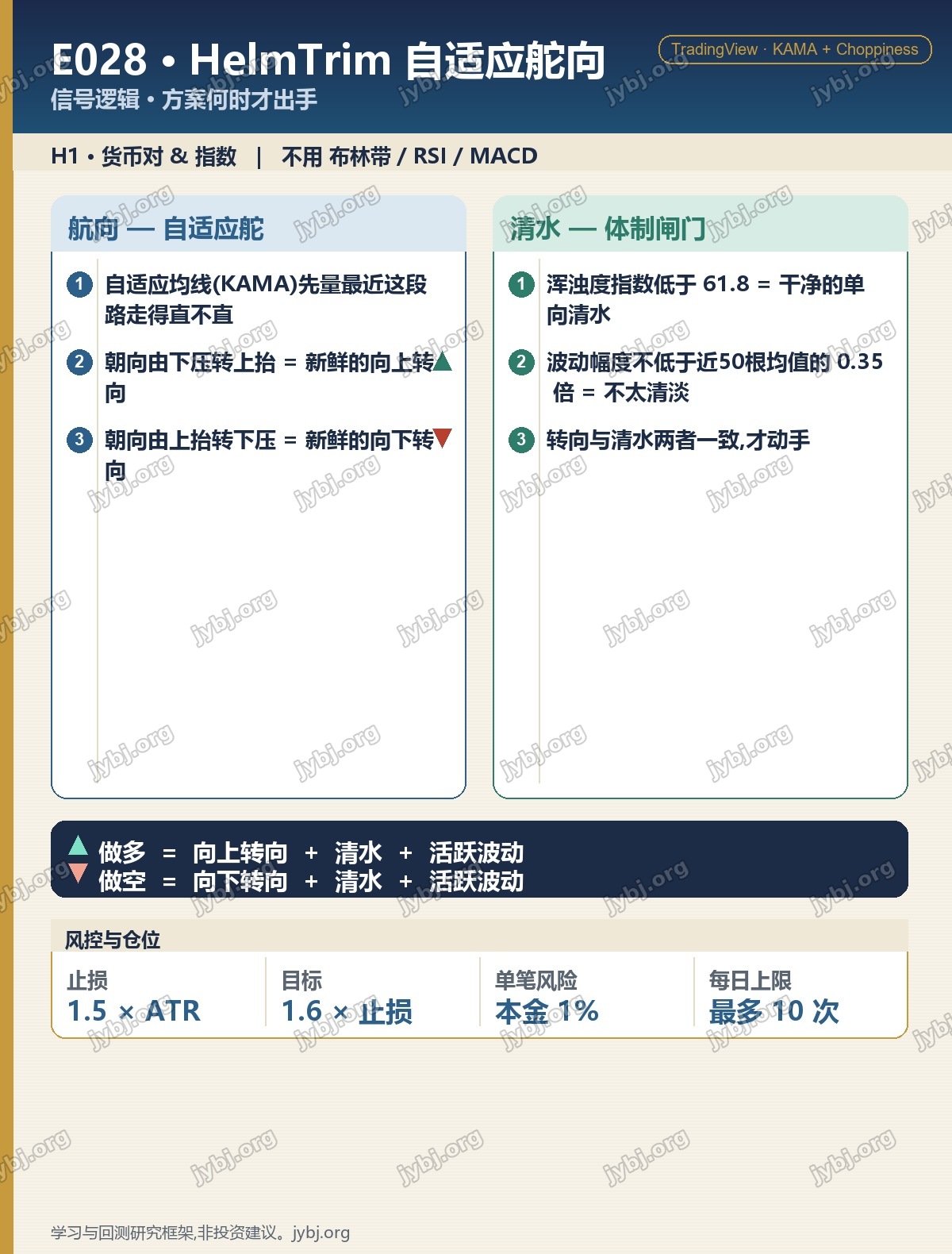

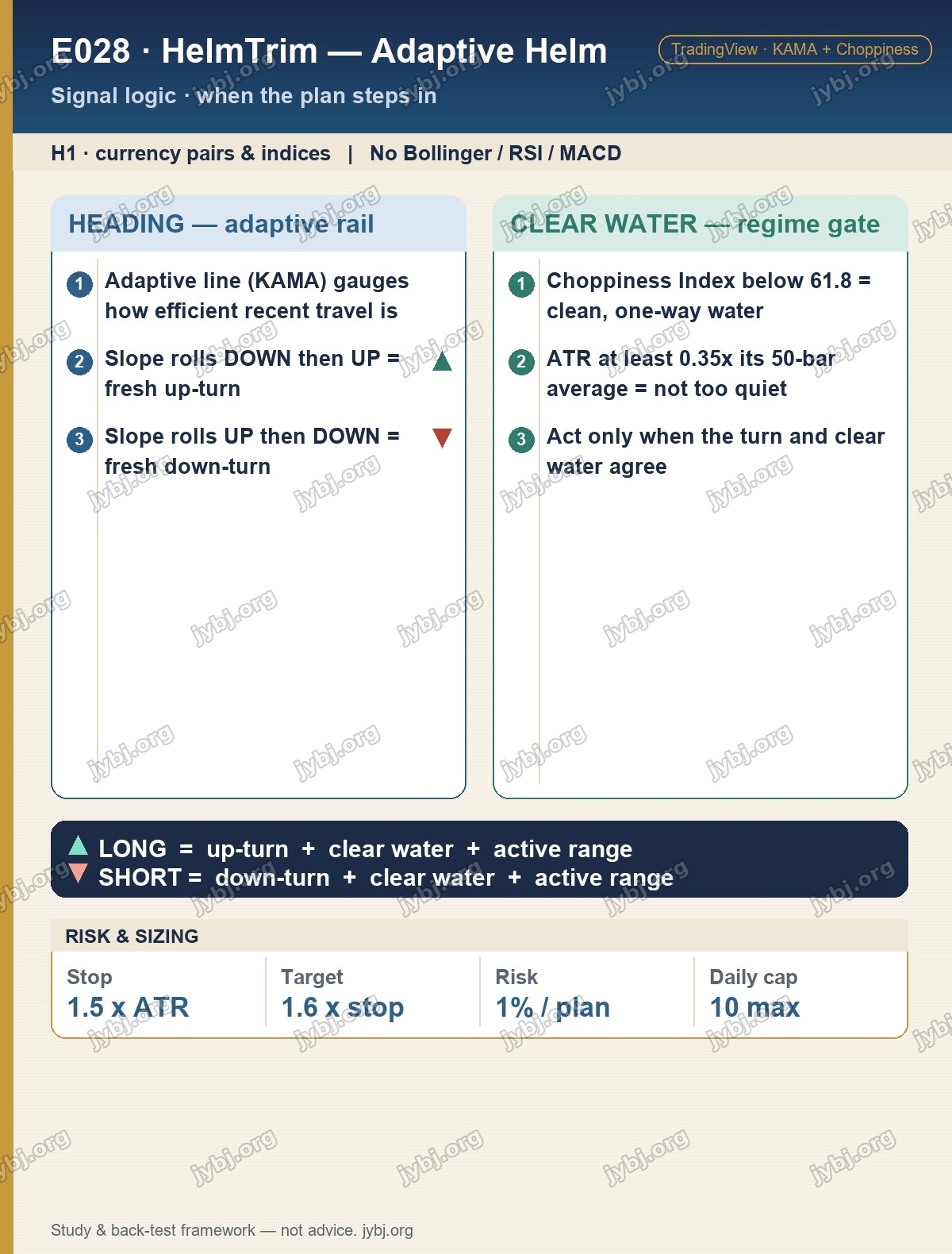

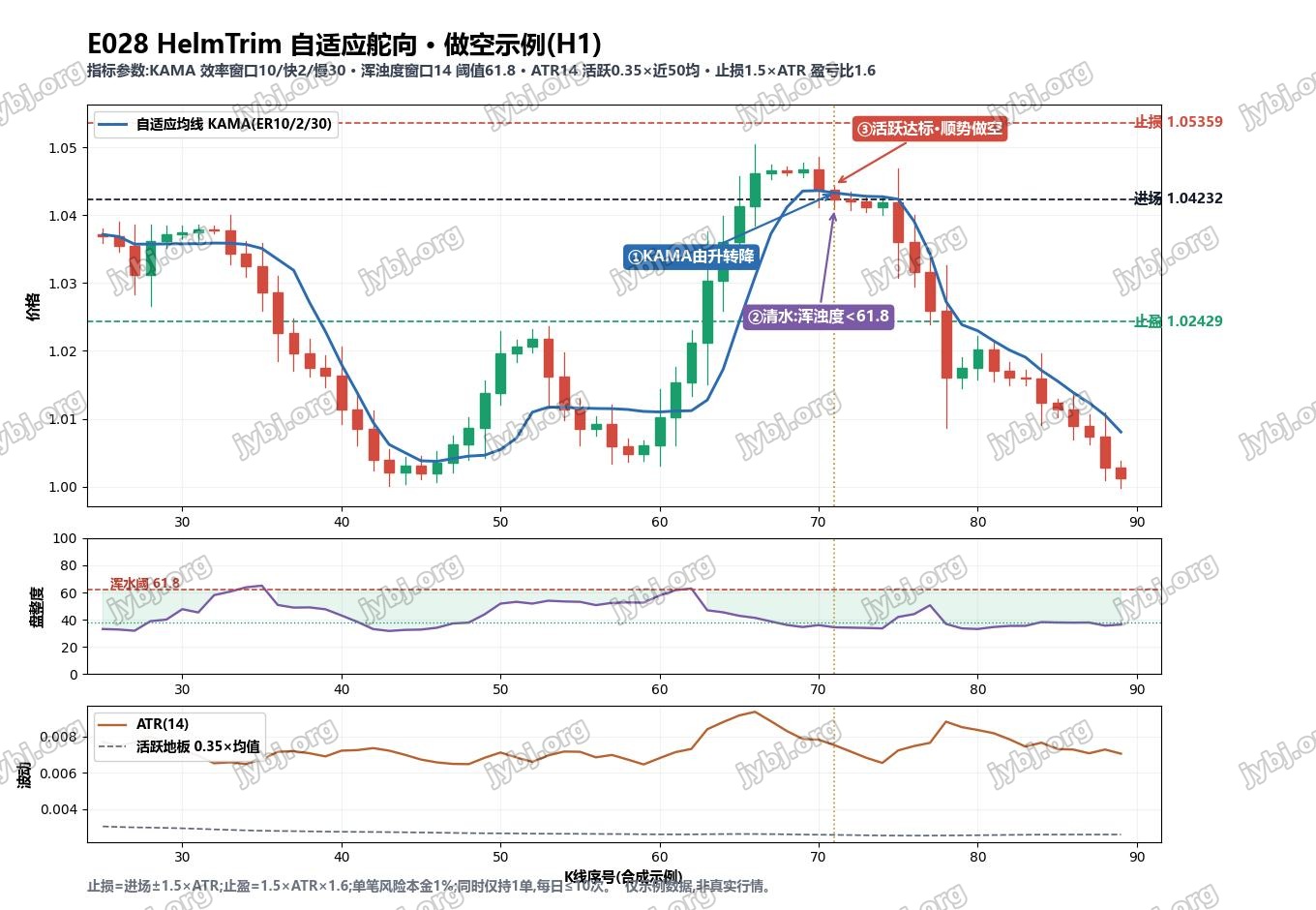

How the plan reads the chart 图示说明

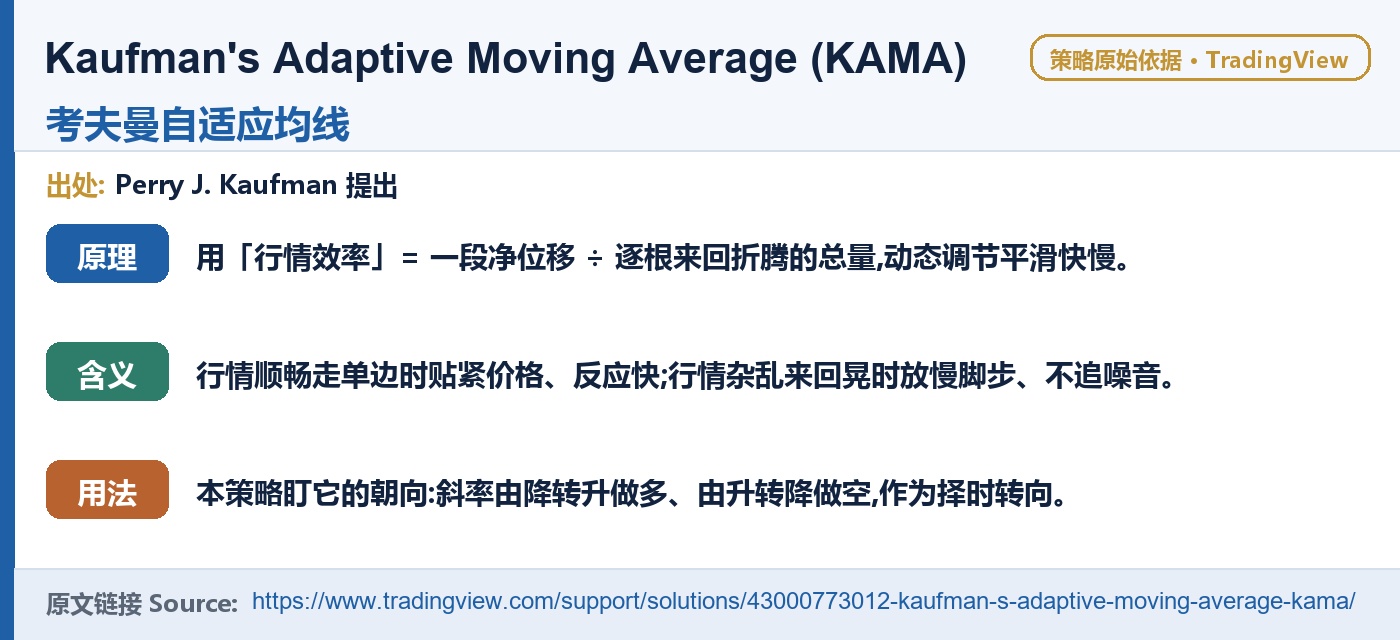

1. The self-adjusting rail — KAMA

It measures how efficient recent travel is: net distance divided by total bar-by-bar wiggle. Clean one-way travel → the rail tightens onto price and reacts fast. Aimless chop → it slows right down and stops chasing noise.

2. The turn — timing

We watch the rail’s slope. Rolling from down to up is a fresh up-turn (long bias); rolling from up to down is a fresh down-turn (short bias).

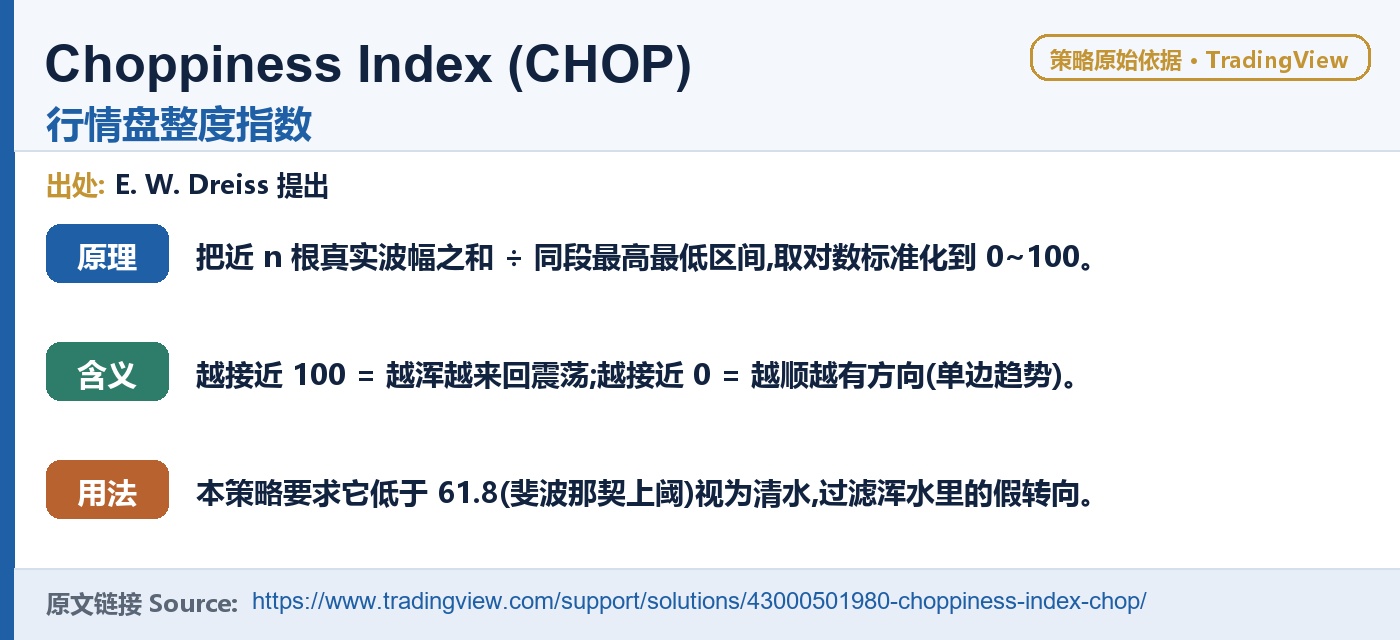

3. The clear-water gate — Choppiness Index

A 0–100 gauge of how murky the market is. High = range-bound washing-machine water; low = clean, one-direction water. We accept the rail’s turn only when it reads below 61.8 — skipping the muckiest chop where turns are just noise.

4. The quiet-market gate — ATR

If the range sits well below its own 50-bar average, the plan waits. Thin, listless bars make weak turns.

Risk & position rules

Protective stop: 1.5 × ATR from entry.
Target: 1.6 × the stop distance (reward-to-risk ≈ 1.6).
Sizing: a fixed 1% of balance per plan; lot size is computed from the stop distance.
Daily cap: at most 10 entries a day, auto-reset next day; one position at a time.
Watchdog: if no entry fires for 3 days, the EA prints and alerts to re-check parameters.

[tv_analysis symbol=”XAUUSD”]

Parameters (defaults) 参数设置

Efficiency-ratio window (KAMA)	10
KAMA fast / slow constant	2 / 30
Choppiness Index window	14
Choppiness ceiling	61.8
ATR period (risk)	14
ATR activity floor	0.35 × 50-bar avg
Stop-loss / Reward-to-risk	1.5 × ATR / 1.6
Max entries per day	10
Magic number	20280817
No-signal watchdog	3 days

Indicator sources (TradingView) 技术指标

Kaufman’s Adaptive Moving Average (KAMA): tradingview.com/support/solutions/43000773012

Choppiness Index (CHOP): tradingview.com/support/solutions/43000501980

This is a study & back-testing framework for learning — not financial advice and not a promise of any gain. Markets carry the risk of drawdown. Run the Strategy Tester over 1–2 years of H1 data before going live, and only commit what you are fully okay seeing move against you.
